IPv4 vs IPv6: A Comprehensive Comparison Guide for 2025

IPv4 vs IPv6 stands as a crucial comparison in 2025, with the older protocol still powering over 90% of internet traffic despite being officially deprecated since 2015. This continued dominance represents a fascinating technological reality when you consider that IPv4’s 32-bit address space allows for only 4.3 billion unique addresses, while IPv6’s 128-bit structure delivers approximately 3.4×10^38 addresses – essentially an unlimited supply for our connected world.

In this guide, you’ll discover the key distinctions between these protocols, understand why transitioning to IPv6 remains both necessary and challenging, and learn what these changes mean for internet connectivity in 2025 and beyond.

Understanding IPv4 and IPv6

The Internet Protocol (IP) system forms the foundation of internet connectivity, enabling billions of devices to communicate worldwide. IPv4 and IPv6 represent different generations of this crucial technology, each with distinct characteristics and capabilities.

What is IPv4?

IPv4 uses a 32-bit address format, providing approximately 4.3 billion unique addresses (2^32). These addresses appear in dot-decimal notation, consisting of four decimal numbers (0-255) separated by periods, like 192.168.1.1.

The IPv4 addressing structure divides addresses into network and host portions. Network bits indicate the logical network area, while host bits specify the logical location within that network. IPv4 addresses fall into five classes (A, B, C, D, and E) determined by the most significant bits of the first byte.

Key limitations of IPv4 include:

● Address exhaustion – The 4.3 billion addresses proved insufficient for modern needs, with unallocated IPv4 addresses becoming exhausted in 2011

● Inefficient routing – Many non-contiguous IPv4 addresses were allocated, making route summarization difficult

● Limited security – The original design lacked built-in security features

● Weak protocol extensibility – The IPv4 header has insufficient size for additional parameters

Address allocation was also geographically imbalanced, with almost 50% of all addresses reserved for the United States.

What is IPv6?

IPv6 employs a 128-bit address structure, delivering an astronomical 340,282,366,920,938,463,463,374,607,431,768,211,456 unique addresses. These addresses appear as eight groups of four hexadecimal digits separated by colons, such as 2001:0db8:0000:0000:0000:8a2e:0370:7334.

For better readability, IPv6 addresses can be shortened by omitting leading zeros in each group (2001:db8:0:0:0:8a2e:370:7334) and further compressed by replacing consecutive zero groups with a double colon (::) used once in an address (2001:db8::8a2e:370:7334).

IPv6 delivers significant improvements over its predecessor:

● Simplified headers with fewer fields (8 vs 12 in IPv4), making processing more efficient

● Built-in security through integrated IPsec at the network layer

● Better Quality of Service (QoS) capabilities for prioritizing time-sensitive traffic

● Stateless address auto-configuration for easier network administration

● Improved routing efficiency without packet fragmentation

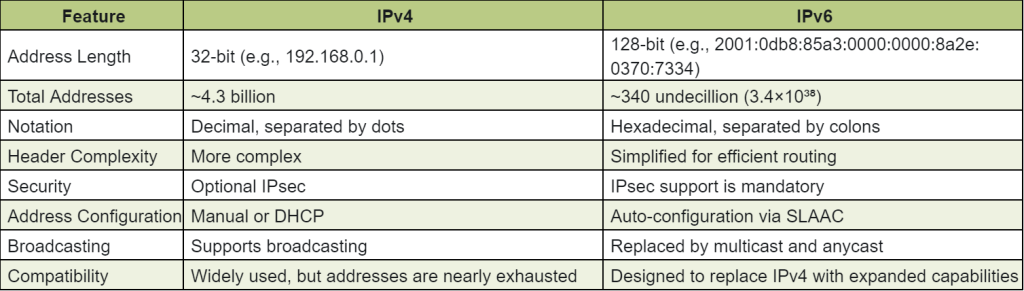

Key Differences Between IPv4 and IPv6

The differences between IPv4 and IPv6 go far beyond theoretical distinctions, directly affecting how networks function in everyday scenarios. Let’s examine these key differences in practical terms.

Address length and structure

IPv4 and IPv6 addresses look completely different at first glance. IPv4 uses a 32-bit address structure shown as four decimal numbers (0-255) separated by periods. IPv6, on the other hand, employs a 128-bit format with eight groups of hexadecimal digits separated by colons. This expansion creates a massive increase in available addresses—from approximately 4.3 billion in IPv4 to 340 undecillion (3.4×10^38) unique addresses in IPv6.

IPv6 addresses can be shortened for better readability by:

1. Omitting leading zeros in each segment

2. Replacing consecutive zero groups with a double colon (::)

For example, the IPv6 address 2001:0db8:0000:0000:0000:8a2e:0370:7334 can be shortened to 2001:db8::8a2e:370:7334. Note that the double colon compression can only be used once per address.

Header complexity and efficiency

IPv6 dramatically streamlines packet processing through simpler headers. While IPv4 uses a variable-length header (20-60 bytes), IPv6 features a fixed 40-byte header. IPv6 eliminated the Checksum field present in IPv4, making packet processing more efficient and straightforward.

Configuration and setup

IPv6 delivers major advancements in network configuration. IPv4 typically relies on manual configuration or DHCP, but IPv6 offers stateless address auto-configuration, allowing devices to generate their own addresses based on network prefixes. This effectively eliminates the need for DHCP servers, making network administration significantly simpler.

Perhaps more importantly, IPv6 removes the requirement for Network Address Translation (NAT), which became necessary in IPv4 due to address limitations. Without NAT, every device can have its own unique public IP address, enabling direct communication and creating a cleaner network architecture.

Security features

Security represents an area where IPv6 outperforms its predecessor. IPv4 was developed when the Internet was small and security concerns were minimal. Any security features had to be added through “add-on” frameworks like IPsec.

While IPsec works with both protocols, it’s built directly into IPv6, making implementation more straightforward. IPv6 incorporates:

● Authentication Header (AH) providing message integrity and source verification

● Encapsulation Security Payload (ESP) offering data confidentiality through encryption

● Secure Neighbor Discovery (SEND) enabling cryptographic confirmation of device identity

Benefits of IPv6 Over IPv4

IPv6 delivers powerful advantages that go far beyond simply addressing the shortage problem. Each improvement directly tackles IPv4’s limitations while meeting the growing demands of today’s internet ecosystem.

Larger address space

The most obvious benefit of IPv6 comes from its massive 128-bit address format, creating approximately 340 undecillion unique addresses, compared to IPv4’s 32-bit format with just 4.3 billion addresses. This astronomical difference means we could theoretically allocate about 1,564 addresses to every square meter of Earth’s surface. Beyond raw numbers, this expanded space eliminates address conservation techniques like NAT, enabling true end-to-end connectivity between devices.

Built-in security with IPsec

IPv4 treated security as an afterthought, while IPv6 incorporates security into its fundamental design. IPsec—a framework providing authentication, confidentiality, and encryption—integrates directly into IPv6 through extension headers, including:

● Authentication Header (AH): Verifies message integrity and confirms source authenticity

● Encapsulation Security Payload (ESP): Delivers strong data confidentiality through encryption

● Secure Neighbor Discovery (SEND): Enables cryptographic confirmation of device identity

This built-in approach makes implementing security much more straightforward compared to IPv4’s “add-on” security model.

Simplified network configuration

IPv6 significantly reduces administrative workload through Stateless Address Autoconfiguration (SLAAC). This feature allows devices to configure themselves with unique global addresses without needing DHCP servers. The protocol’s abundant address space enables consistent block sizing that over-allocates addresses, making network design and management considerably simpler.

Improved routing and performance

The IPv6 header contains only 8 fields (versus IPv4’s 12), making packet processing more efficient. This streamlined design reduces the processing burden on routers and improves forwarding speed. IPv6 also uses hierarchical addressing, enabling more effective route aggregation that minimizes routing table sizes. Additionally, IPv6 eliminates router-based packet fragmentation—placing this responsibility solely with end devices—further enhancing routing efficiency.

Why IPv4 is still widely used

Network Address Translation (NAT) has effectively extended IPv4’s useful life by allowing multiple devices to share a single public IP address. From a practical standpoint, IPv4 remains more familiar territory for most network administrators. As one industry expert noted, “Even at $50 an IP, it was still worth purchasing IPv4 addresses because it’s a streamlined process. You don’t have to buy new gear, there’s no learning curve, and there’s no backwards compatibility issues.”

Conclusion

As we approach 2025, the transition from IPv4 to IPv6 is becoming increasingly critical. With the internet of things (IoT) and the growing number of connected devices, the limitations of IPv4 are becoming more apparent. IPv6 offers a robust solution to these challenges, providing a vast address space, improved security, and simplified network management. While the transition may present challenges, the long-term benefits of adopting IPv6 far outweigh the temporary hurdles.
